The elevator of the future 1

Tomorrow’s cities will experience seamless vertical travel. Future elevators redefine urban mobility, presenting transformative potential. The Elevator Modernization Market, projected to grow at a 12.53% Compound Annual Growth Rate from 2024 to 2032, underscores this significant shift. This advanced elevator, lift technology promises a new era.

Key Takeaways

• Future elevators will move in many directions, not just up and down. This means they can go sideways and even diagonally. This helps people move around buildings faster and easier.
• New elevators use smart technology like AI and the Internet of Things. This makes them more efficient and safer. They can learn traffic patterns and tell when they need repairs before they break.
• These advanced elevators will make buildings better. They save energy and take up less space. This gives architects more freedom to design tall and unique buildings.

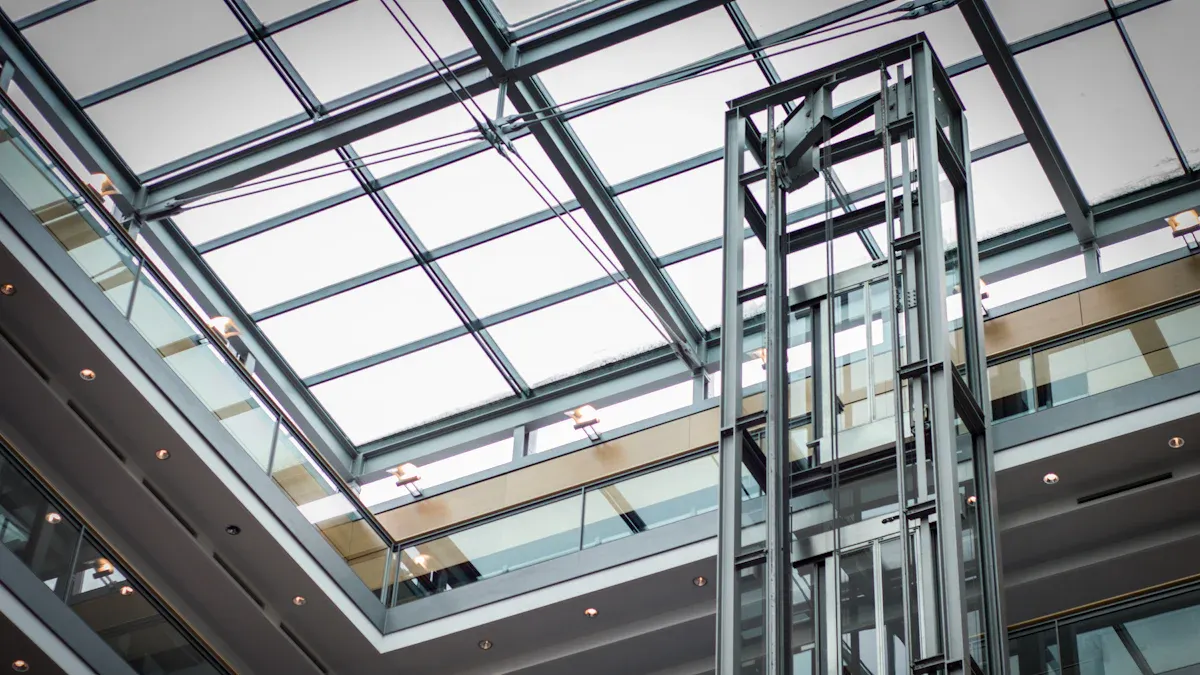

Revolutionary Mechanics of the Future Lift

Future elevators move beyond simple up-and-down travel. Engineers design these systems with groundbreaking mechanics. They aim to redefine how people navigate buildings.

Multi-Directional Movement

Future lifts achieve multi-directional movement through several innovative components. An innovative rail design allows the car system to travel vertically, horizontally, or even diagonally. A steel-built magnetic mechanism, powered by electrical steel, propels the cars. This mechanism generates a high flux density, which increases motor torque. An exchanger unit is a crucial component. It enables the car to pivot and change direction from vertical to horizontal travel. This unit features a locking device and a rotation drive. It engages with the car’s ‘sledge’ to rotate it. The sledge sits at the back of each car. It contains roller guides, a permanent magnet, and braking systems. These parts sit on the guide rails, allowing for precise coordination and movement. Lightweight cabins, constructed with high-strength steel for the sledge and exchanger, contribute to the system’s efficiency and durability. Linear motor technology replaces traditional ropes. This enables both vertical and horizontal movement of elevator cars. This rope-free design allows multiple cars to operate in a single shaft, moving in all directions.

Maglev Technology for Elevators

Maglev technology forms the core engineering principle for advanced elevator shafts. This system eliminates traditional steel ropes by using magnetic levitation. The elevator cars are guided by a moving magnetic field. A maglev track with integrated coils generates this field. This system employs a linear motor, enabling both vertical and horizontal movement. This approach allows for multiple independent cabins within a single shaft. It significantly reduces waiting times and increases capacity. The underlying principle is similar to high-speed maglev trains. These trains utilize magnetic fields for suspension, guidance, and propulsion. The core engineering principle of maglev technology involves using a magnetic field for the suspension, guidance, and propulsion of the vehicle along its track.

Rope-Free Elevator Systems

Rope-free elevator systems offer significant advantages over traditional cable-driven elevators. Brad Nemeth, vice president of sustainability for Thyssenkrupp Elevator Americas, highlights the sideways capability of these systems. This feature significantly increases efficiency. It allows passengers to move to all parts of a building. This system also enables seamless transportation to nearby infrastructure, such as parking garages. It blurs the lines between external and internal building transport. Rope-free systems increase passenger capacity by 50%. They reduce wait times by half. They also reduce the elevator’s overall footprint in a building by half. This is due to the removal of ropes and the use of linear motors.

Rope-free systems, like MULTI, can increase shaft transport capacity by up to 50%. They reduce the elevator footprint in buildings by as much as 50%. They require smaller shafts than conventional elevators. This increases a building’s usable area by up to 25%. Traditional elevator-escalator footprints can occupy up to 40% of a building’s floor space. This leads to significant construction cost savings and increased rent revenues from more usable space. Additionally, these systems remove height limitations and vertical alignment constraints. They offer unprecedented design freedom for architects and building developers. Multiple self-propelled elevator cabins run in a loop within a single shaft, similar to a metro system. This provides near-constant access to a cabin every 15 to 30 seconds. A transfer stop every 50 meters ensures efficient movement.
