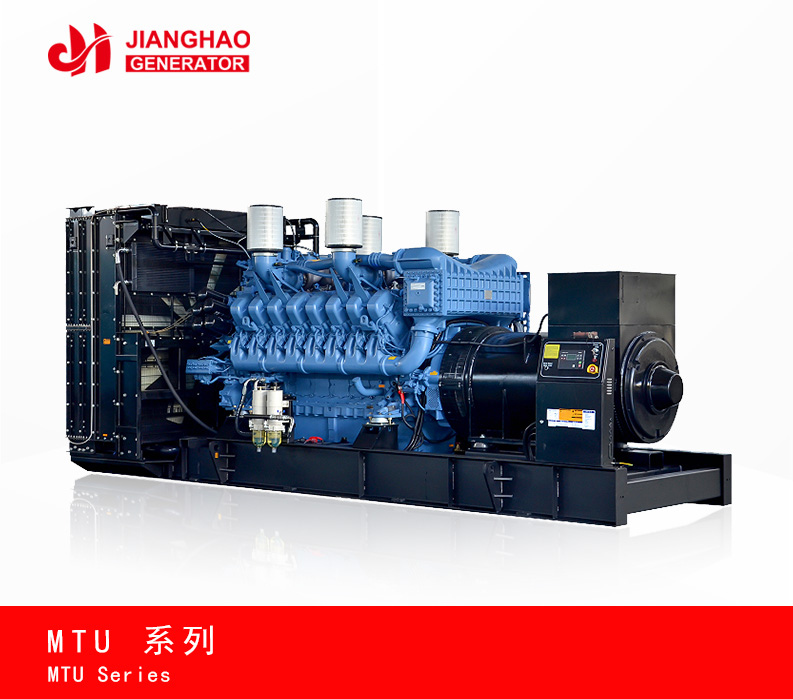

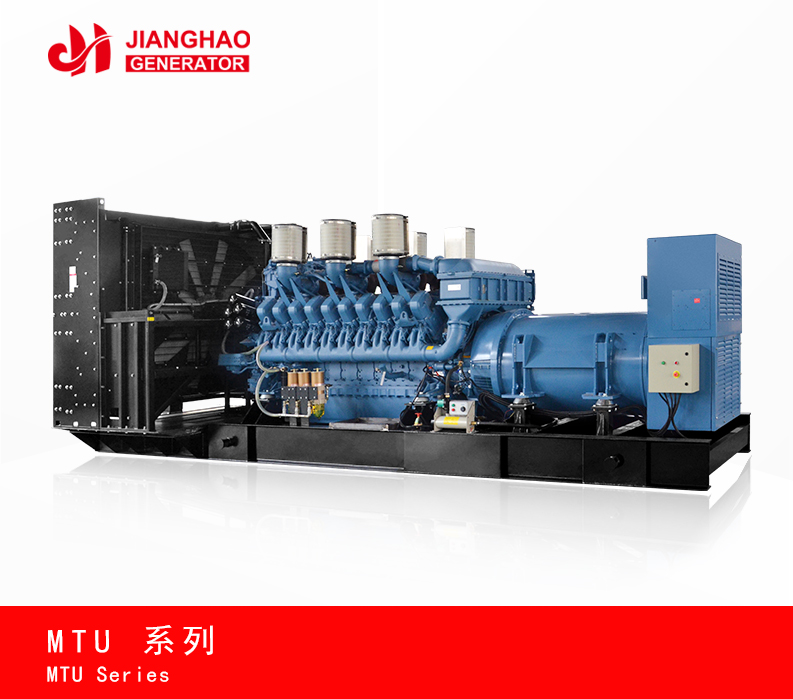

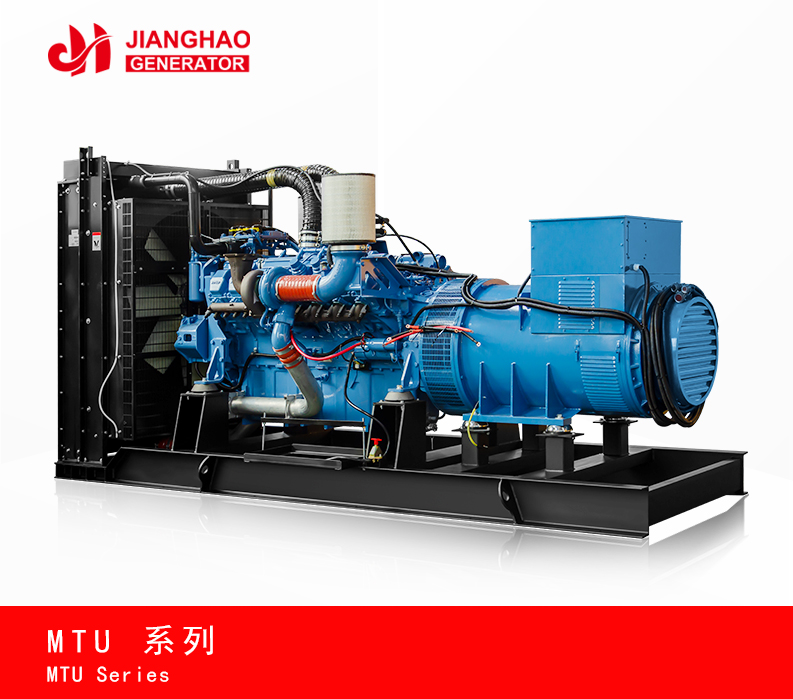

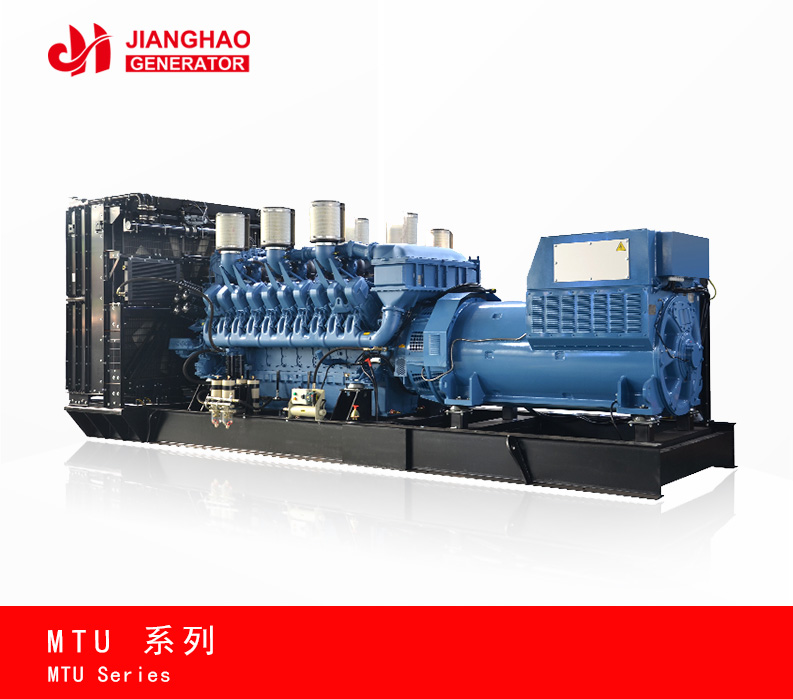

MTU diesel generator
Short Description:
MTU is a subsidiary of the Daimler-Benz Group, with diesel generator sets ranging from 200kW to 2400kW. MTU is a world-leading manufacturer of heavy-duty diesel engines and enjoys high prestige globally. For over a century, as a paragon of high quality in its industry, its products have been widely used in ships, heavy-duty vehicles, construction machinery, railway locomotives, etc. As a supplier of land, marine and railway power systems and diesel generator set engines, MTU is renowned worl...
MTU is a subsidiary of the Daimler-Benz Group, with diesel generator sets ranging from 200kW to 2400kW. MTU is a world-leading manufacturer of heavy-duty diesel engines and enjoys high prestige globally. For over a century, as a paragon of high quality in its industry, its products have been widely used in ships, heavy-duty vehicles, construction machinery, railway locomotives, etc. As a supplier of land, marine and railway power systems and diesel generator set engines, MTU is renowned worldwide for its leading technology, reliable products and first-class services.
Main features of MTU diesel generator sets:
1. V-shaped arrangement with a 90° angle, water-cooled four-stroke, exhaust gas turbocharged, and inter-cooled.
2. The 2000 series adopts electronically controlled unit injection, while the 4000 series uses a common rail injection system.
3. Advanced electronic management system (MDEC/ADEC), outstanding ECU alarm function, and a self-diagnostic system capable of detecting over 300 engine fault codes.
4. The 4000 series engines have an automatic cylinder deactivation function under light load conditions.
5. The first major overhaul time for the 2000 series and 4000 series diesel generator sets is 24,000 hours and 30,000 hours respectively, which is longer than that of similar products.
Main technical parameters of MTU Mercedes-Benz diesel generator sets:
|
机组型号 Unit Model |
输出功率 output power(kw) |
电流 current(A) |
柴油机型号 Diesel engine model |
缸数cylinders Qty. |
缸径*行程Cylinder diameter * Stroke（mm） |
排气量 gas displacement (L) |
燃油消耗率 fuel consumption rate g/kw.h |
机组尺寸 Unit size mm L×W×H |
机组重量 Unit weight kg |
|
|
KW |
KVA |
|||||||||
|
JHM-220GF |
220 |
275 |
396 |
6R1600G10F |
6 |
122×150 |
10.5L |
201 |
2800×1150×1650 |
2500 |
|
JHM-250GF |
250 |
312.5 |
450 |
6R1600G20F |
6 |
122×150 |
10.5L |
199 |
2800×1150×1650 |
2900 |
|
JHM-300GF |
300 |
375 |
540 |
8V1600G10F |
8 |
122×150 |
14L |
191 |
2840*1600*1975 |
3250 |
|
JHM-320GF |
320 |
400 |
576 |
8V1600G20F |
8 |
122×150 |
14L |
190 |
2840*1600*1975 |
3250 |
|
JHM-360GF |
360 |
450 |
648 |
10V1600G10F |
10 |
122×150 |
17.5L |
191 |
3200*1600*2000 |
3800 |
|
JHM-400GF |
400 |
500 |
720 |
10V1600G20F |
10 |
122×150 |
17.5L |
190 |
3320×1600×2000 |
4000 |
|
JHM-480GF |
480 |
600 |
864 |
12V1600G10F |
12 |
122×150 |
21L |
195 |
3300*1660*2000 |
3900 |
|
JHM-500GF |
500 |
625 |
900 |
12V1600G20F |
12 |
122×150 |
21L |
195 |
3400×1660×2000 |
4410 |
|
JHM-550GF |
550 |
687.5 |
990 |
12V2000G25 |
12 |
130×150 |
23.88L |
197 |
4000*1650*2280 |
6500 |
|
JHM-630GF |
630 |
787.5 |
1134 |
12V2000G65 |
12 |
130×150 |
23.88L |
202 |
4200*1650*2280 |
7000 |
|
JHM-800GF |
800 |
1000 |
1440 |
16V2000G25 |
16 |
130*150 |
31.84L |
198 |
4500*2000*2300 |
7800 |
|
JHM-880GF |
880 |
1100 |
1584 |
16V2000G65 |
16 |
130*150 |
31.84L |
198 |
4500*2000*2300 |
7800 |
|
JHM-1000GF |
1000 |
1250 |
1800 |
18V2000G65 |
18 |
130*150 |
35.82L |
202 |
4700*2000*2380 |
9000 |
|
JHM-1100GF |
1100 |
1375 |
1980 |
12V4000G21R |
12 |
165×190 |
48.7L |
199 |
6100*2100*2400 |
11500 |
|
JHM-1200GF |
1200 |
1500 |
2160 |
12V4000G23R |
12 |
170×210 |
57.2L |
195 |
6150*2150*2400 |
12000 |
|
JHM-1400GF |
1400 |
1750 |
2520 |
12V4000G23 |
12 |
170×210 |
57.2L |
189 |
6150*2150*2400 |
13000 |
|
JHM-1500GF |
1500 |
1875 |
2700 |
12V4000G63 |
12 |
170×210 |
57.2L |
193 |
6150*2150*2400 |
14000 |
|
JHM-1760GF |
1760 |
2200 |
3168 |
16V4000G23 |
16 |
170×210 |
76.3L |
192 |
6500*2600*2500 |
17000 |
|
JHM-1900GF |
1900 |
2375 |
3420 |
16V4000G63 |
16 |
170×210 |
76.3L |
191 |
6550*2600*2500 |
17500 |
|
JHM-2200GF |
2200 |
2750 |
3960 |
20V4000G23 |
20 |
170×210 |
95.4L |
195 |
8300*2950*2550 |
24000 |
|
JHM-2400GF |
2400 |
3000 |
4320 |
20V4000G63 |
20 |
170×210 |
95.4L |
193 |
8300*2950*2550 |
24500 |
|
JHM-2500GF |
2400 |
3125 |
4500 |
20V4000G63L |
20 |
170×210 |
95.4L |
192 |
8300*2950*2550 |
25000 |
1. The above technical parameters are based on a speed of 1500 RPM, frequency of 50 Hz, rated voltage of 400/230 V, power factor of 0.8, and a wiring method of 3-phase 4-wire. 60 Hz generator sets can be customized according to the special needs of customers.
2. Generator sets can be equipped with well-known brands such as Wuxi Stamford, Shanghai Marathon, and Shanghai Hengsheng according to customer requirements.
3. This parameter table is for reference only. Any changes will not be notified separately.
