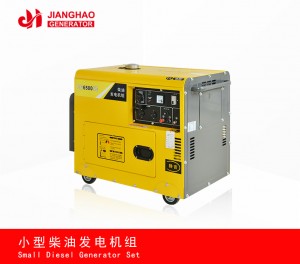

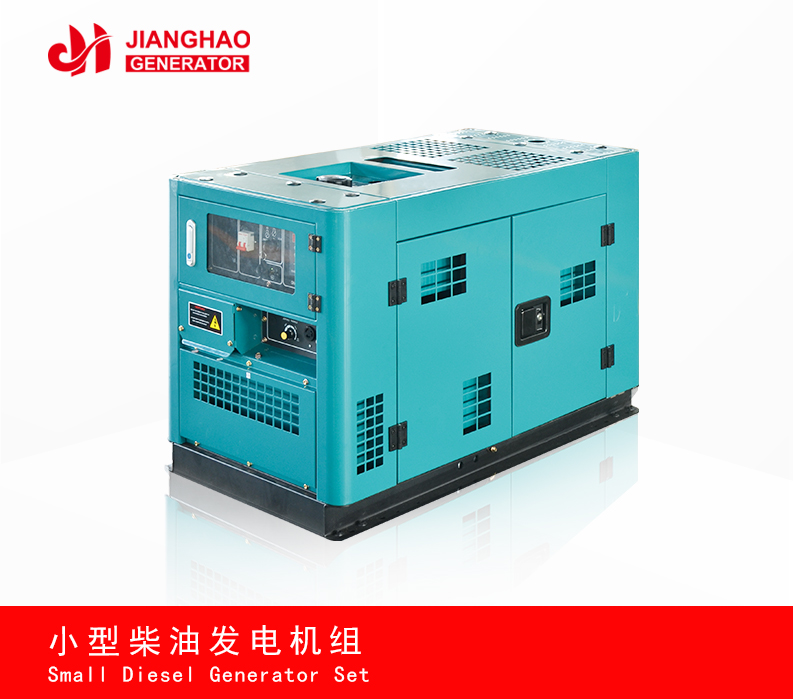

Small diesel generator
Short Description:
Main features of MTU diesel generator sets: 1. V-shaped arrangement with a 90° angle, water-cooled four-stroke, exhaust gas turbocharged, and inter-cooled. 2. The 2000 series adopts electronically controlled unit injection, while the 4000 series uses a common rail injection system. 3. Advanced electronic management system (MDEC/ADEC), outstanding ECU alarm function, and a self-diagnostic system capable of detecting over 300 engine fault codes. 4. The 4000 series engines have an automatic cyli...
Small-scale units mainly refer to generators with power below 30KW. The power sources are selected from well-known domestic brands such as Changzhou Diesel Engine Factory and Weifang Diesel Engine Factory. They are widely used in rural areas, mines, households, restaurants, etc.
Main parameters of the small diesel generator set:
|
Unit Model |
output power(kw) |
current(A) |
Diesel engine model |
cylinders Qty. |
Cylinder diameter * Stroke（mm） |
gas displacement (L) |
fuel consumption rate g/kw.h |
Unit size mm L×W×H |
机组重量 Unit weight kg |
|
|
|
KW |
KVA |
|
|
|
|
|
|
|
|
|
JHC-3GF |
3 |
3.75 |
5.4 |
S175M |
1 |
75/80 |
1.2 |
210 |
1000×480×800 |
300 |
|
JHC-5GF |
5 |
6.25 |
9 |
S180M |
1 |
80/80 |
1.2 |
210 |
1100×600×800 |
300 |
|
JHC-8GF |
8 |
10 |
14.4 |
S195M |
1 |
95/115 |
1.63 |
265.2 |
1150×650×900 |
330 |
|
JHC-10GF |
10 |
12.5 |
18 |
S1100M |
1 |
100/115 |
1.63 |
265.2 |
1200×650×900 |
340 |
|
JHC-12GF |
12 |
15 |
21.6 |
S1110M |
1 |
110/115 |
1.63 |
265.2 |
1200×650×900 |
350 |
|
JHC-15GF |
15 |
20 |
28.8 |
S1115M |
1 |
115/115 |
1.63 |
265.2 |
1300×700×900 |
460 |
|
JHC-20GF |
20 |
25 |
36 |
L28M |
1 |
128/115 |
1.6 |
265.2 |
1350×750×950 |
480 |
|
JHC-22GF |
22 |
27.5 |
39.6 |
L32M |
1 |
132/115 |
1.6 |
265.2 |
1350×750×950 |
490 |
Small air-cooled diesel generator set
The small air-cooled diesel generator set is compact in size, lightweight and has low fuel consumption. It is suitable for use in households, supermarkets, office buildings, small factories, etc.
Main parameters of the small air-cooled diesel generator set:
|
机组型号 Unit Model |
输出功率 output power(kw) |
电流 current(A) |
柴油机型号 Diesel engine model |
缸数cylinders Qty. |
缸径*行程Cylinder diameter * Stroke（mm） |
排气量 gas displacement (L) |
燃油消耗率 fuel consumption rate g/kw.h |
|
|
KW |
KVA |
|||||||
|
JHF-1.5GF |
1.5 |
1.875 |
2.7 |
Single cylinder |
170F |
78*62 |
660*480*530 |
63 |
|
JHF-2GF |
2 |
2.5 |
3.6 |
Single cylinder |
178F |
78*62 |
700*480*510 |
68 |
|
JHF-2GF-静 |
2 |
2.5 |
3.6 |
Single cylinder |
178F |
78*62 |
940*555*780 |
150 |
|
JHF-3GF |
3 |
3.75 |
5.4 |
Single cylinder |
178FA |
78*64 |
700*480*510 |
69 |
|
JHF-3GF-静 |
3 |
3.75 |
5.4 |
Single cylinder |
178FA |
78*64 |
940*555*780 |
150 |
|
JHF-4GF |
4 |
5 |
7.2 |
Single cylinder |
186F |
86*70 |
755*520*625 |
103 |
|
JHF4-GF-静 |
4 |
5 |
7.2 |
Single cylinder |
186F |
86*70 |
960*555*780 |
175 |
|
JHF-5GF |
4.2 |
5.25 |
18.3 |
Single cylinder |
186FA |
86*72 |
755*520*625 |
104 |
|
JHF-5GF-静 |
4.2 |
5.25 |
18.3 |
Single cylinder |
186FA |
86*72 |
960*555*780 |
175 |
|
JHF-8GF |
8 |
10 |
14.4 |
Twin-cylinder |
R2V820 |
86*70 |
870*630*700 |
195 |
|
JHF-8GF-静 |
8 |
10 |
14.4 |
Twin-cylinder |
R2V820 |
86*70 |
1040*660*740 |
245 |
|
JHF-9GF |
9 |
11.25 |
16.2 |
Twin-cylinder |
R2V840 |
86*72 |
870*630*700 |
195 |
|
JHF-9GF-静 |
9 |
11.25 |
16.2 |
Twin-cylinder |
R2V840 |
86*72 |
1040*660*740 |
245 |
|
JHF-10GF |
10 |
12.5 |
18 |
Twin-cylinder |
R2V870 |
88*72 |
870*630*700 |
195 |
|
JHF-10GF-静 |
10 |
12.5 |
18 |
Twin-cylinder |
R2V870 |
88*72 |
1040*660*740 |
245 |
|
JHF-12GF |
15 |
12 |
21.6 |
Twin-cylinder |
R2V910 |
88*75 |
870*630*700 |
195 |
|
JHF-12GF-静 |
15 |
12 |
21.6 |
Twin-cylinder |
R2V910 |
88*75 |
1040*660*740 |
248 |
1. The above technical parameters have a frequency of 50Hz, a rated voltage of 400/230V, a power factor of 0.8, and a connection method of 3-phase 4-wire. The 60Hz generator can be customized according to the special needs of customers.
2. This parameter table is for reference only. Any changes will not be notified separately.
