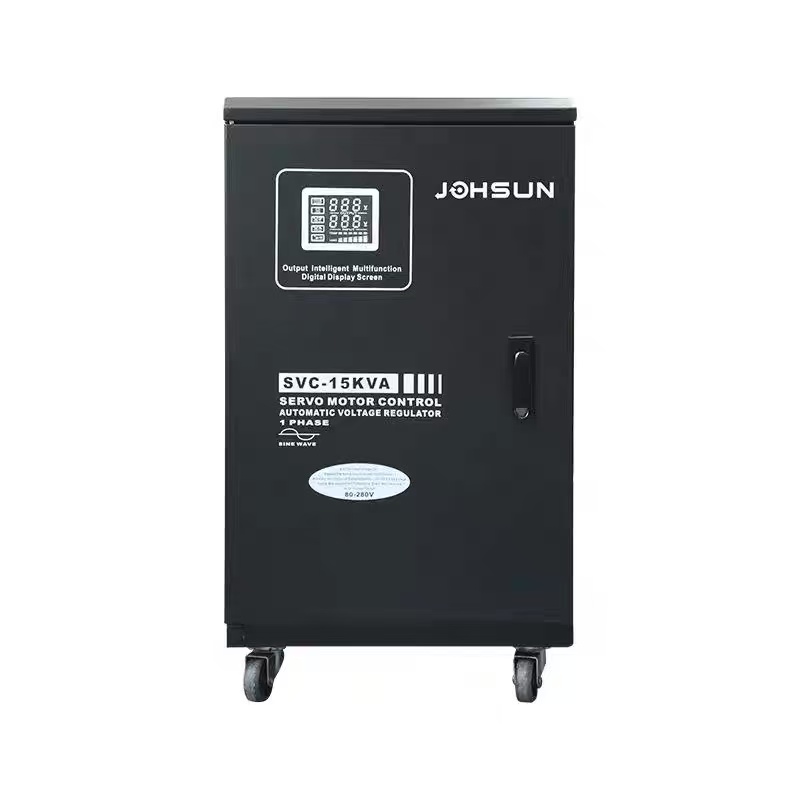

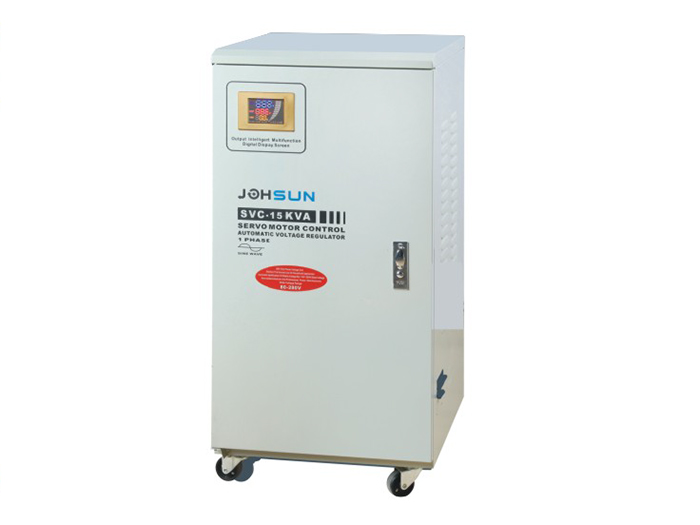

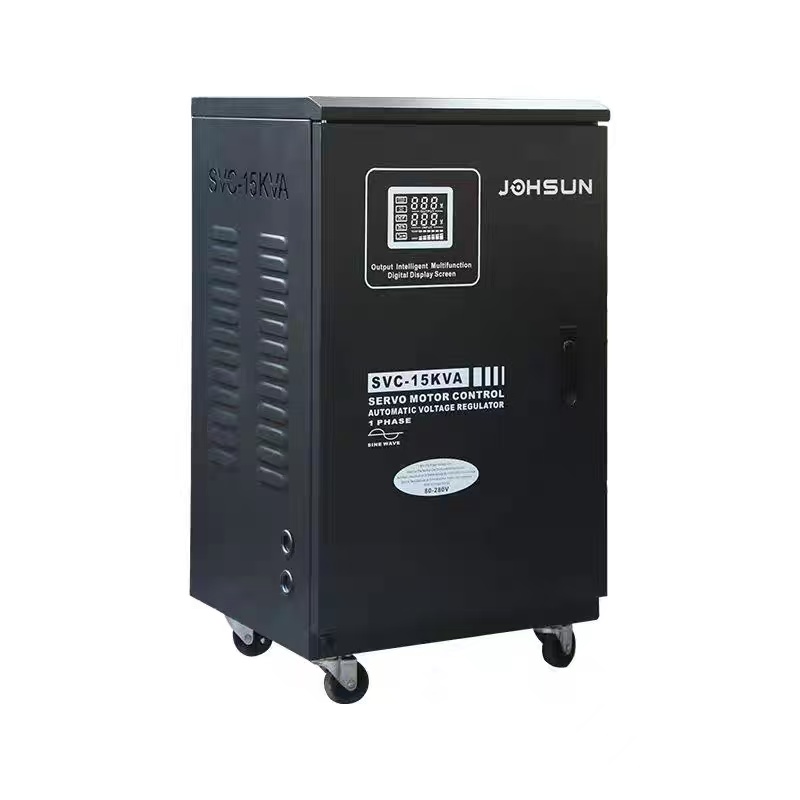

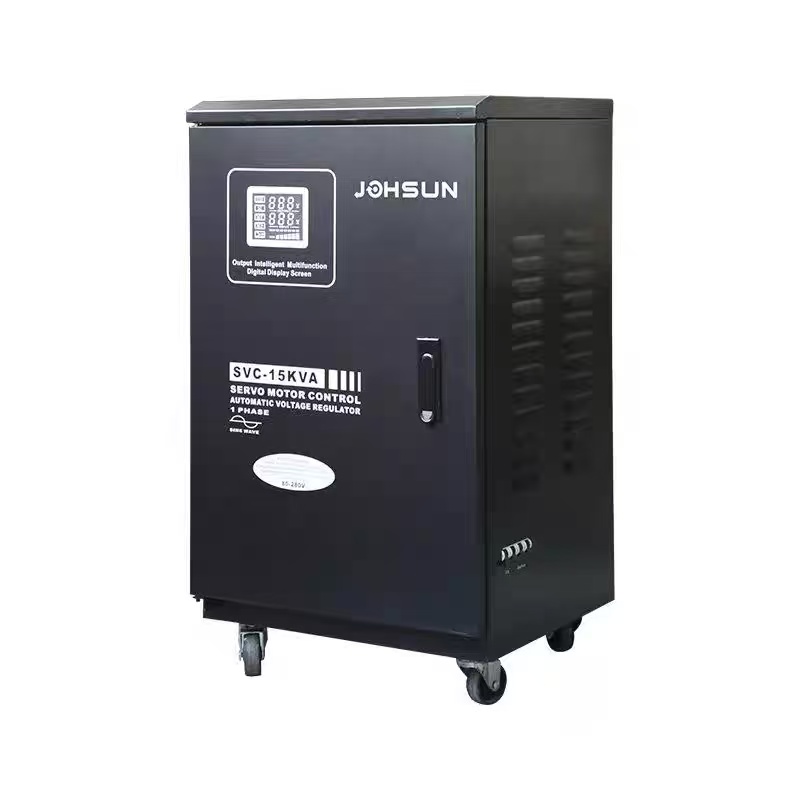

Vertical Single-phase Automatic Voltage Regulator
Short Description:
Properties Single-phase input voltage 160V-250V/100V-260V Frequency 50Hz/60Hz Single-phase output voltage 0.5KVA-3KVA 220V and 110V 5KVA-30KVA 220V (other voltages customization available) Adjustable time <1s (when input voltage has a change of 10%) Ambient temperature -5℃~+40℃ Waveform distortion No additional waveform distortion Load power factor 0.8 Accuracy of voltage stabilization 220V±3% 110V±6% Dielectric strength 1500V/1min Insulation resistance ≥2MΩ Typ...
Properties
| Single-phase input voltage | 160V-250V/100V-260V | Frequency | 50Hz/60Hz |
| Single-phase output voltage | 0.5KVA-3KVA 220V and 110V 5KVA-30KVA 220V (other voltages customization available) |
Adjustable time | <1s (when input voltage has a change of 10%) |
| Ambient temperature | -5℃~+40℃ | ||
| Waveform distortion | No additional waveform distortion | ||
| Load power factor | 0.8 | ||
| Accuracy of voltage stabilization | 220V±3% 110V±6% | Dielectric strength | 1500V/1min |
| Insulation resistance | ≥2MΩ |
Type specification
| （Type） | Spec(KVA) | Product size D×W×H(cm) | Package size D×W×H(cm) | Qty | Input Range |
| Single-phase two-wire (desk type) | SVC-5 | 28×31×44.5 | 36×40×53 | 1 | 160-250V |
| SVC-8 | 33×33×56 | 39×42×60.5 | 1 | 160-250V | |
| SVC-10 | 33×33×56 | 39×42×60.5 | 1 | 160-250V | |
| SVC-15 | 35×36.5×64.5 | 42.5×45×72 | 1 | 160-250V | |
| SVC-20 | 35.5×39×77 | 43×47×84 | 1 | 160-250V | |
| SVC-30 | 42×46×83 | 49×52.5×91.5 | 1 | 160-250V |
